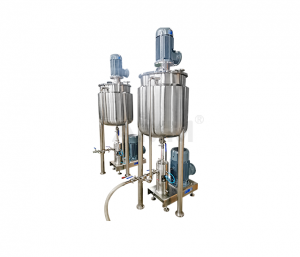

High shear dispersion ultrasonic reactor
| Model： | AIR-200L High shear reactor |
| High speed reactor parameter | |
| Reactor system | |
| Reactor: Single-layer 200L stainless steel reactor
Kettle body material: SS316L Design full volume: 250L Working volume: 200L Reactor interlayer: with interlayer and insulation Kettle lid form: semi-open lid (can be directly fed) Discharge method: manual ball valve discharge Kettle body structure: upper and lower half open cover, lower head Working pressure: normal pressure Installation method: three outrigger installation Polishing standard: 0.8, 1.6 finish (optional for food, medical and health standards) |
|
| High speed disperser system | |
| Device model: ODG3-100
Power supply: 380V / 50HZ Motor power: 11KW frequency conversion motor Brand: ABB or other Motor speed: 2960rpm Equipment speed: 600 ~ 12000rpm Protection level: F Speed adjustment: adjustable frequency conversion Contact material: SUS316L Non-contact materials: SUS304 Working head form: F high shear dispersing working head (helical gear, three sets of fixed rotor) Working head material: SUS316L stainless steel Mechanical seal: cartridge double-end mechanical seal (cooling water circulation cooling) Drive type: belt drive |
|
| Disperser system | |
| Device model: MA-200
Power supply: 380V / 50HZ / 6P Power: 4KW Brand: ABB or other Speed: 960rpm Motor: frequency conversion Protection level: IP54 Insulation class: F Contact material: SUS316L Non-contact materials: SUS304 Working head form: dissolving gear disc + three-blade propulsion (advancing up and down adjustable) Installation method: flange connection Stainless steel flange: with seal |
|
